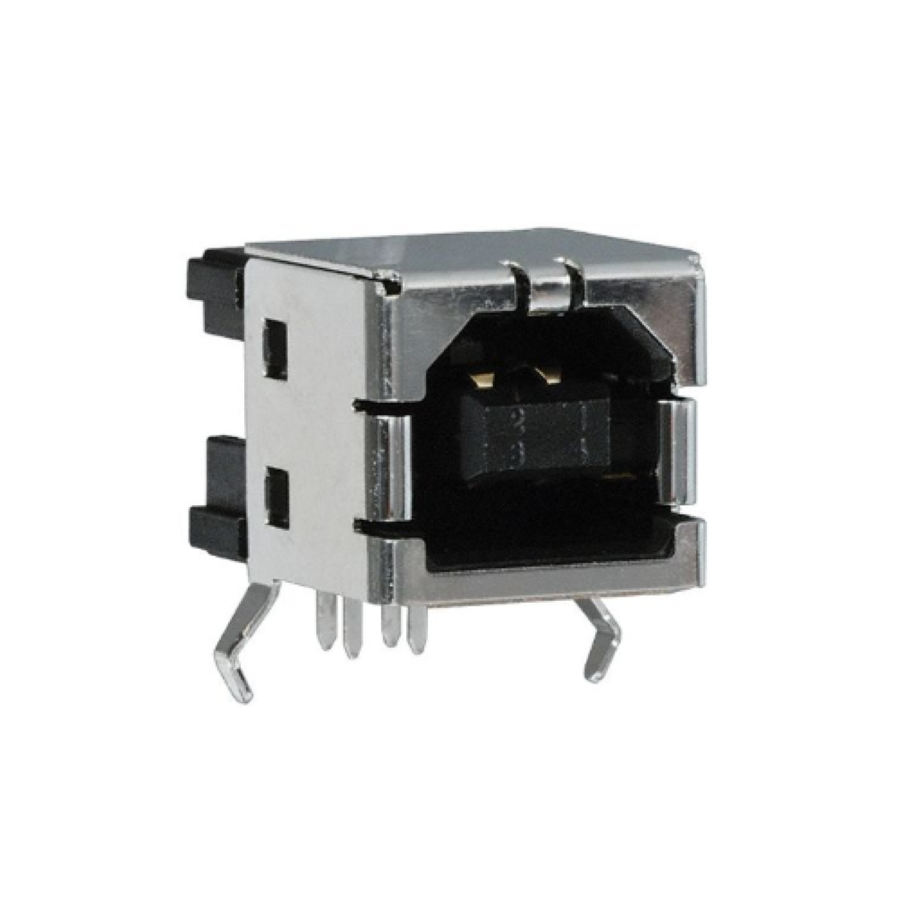

292304-1
Manufacturer:
TE Connectivity
Mfr.Part #:
292304-1
Datasheet:
Description:
USB Connectors Through Hole USB-B (USB TYPE-B) Female USB 2.0
| Parameter | Value |
|---|---|
| Termination | Solder |
| Packaging | Tray |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Gold Flash over Nickel, Gold Flash, Gold, Gold over Nickel |
| Contact Material(Contact Finish) | Copper Alloy |
| Type | USB-B (USB TYPE-B) |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Active |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 4 |
| Mounting Style | Through Hole, Solder, PCB |
| lead free status | Lead Free |
| operating temperature | -55.0 °C to 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| USB Standard | USB 2.0 |
| Number of Positions | 4 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Resistance | 10 mΩ |
| size width | 15.7 mm |
| size length | 15.7 mm |
| size height | 11.5 mm |
| voltage rating ac | 30 V |
| elv compliant | Compliant |
| Housing Color | Black |
| number of mating cycles | 1500 |
| Mounting Angle | Horizontal |
Stock: 127
Distributors
pcbx
pcbxUnit Price$0.54192
Ext.Price$0.54192
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54192 | $0.54192 |
| 10 | $0.42864 | $4.28640 |
| 25 | $0.39080 | $9.77000 |
| 50 | $0.35630 | $17.81500 |
| 100 | $0.32485 | $32.48500 |
| 300 | $0.31082 | $93.24600 |
| 500 | $0.29740 | $148.70000 |
| 1000 | $0.28062 | $280.62000 |
